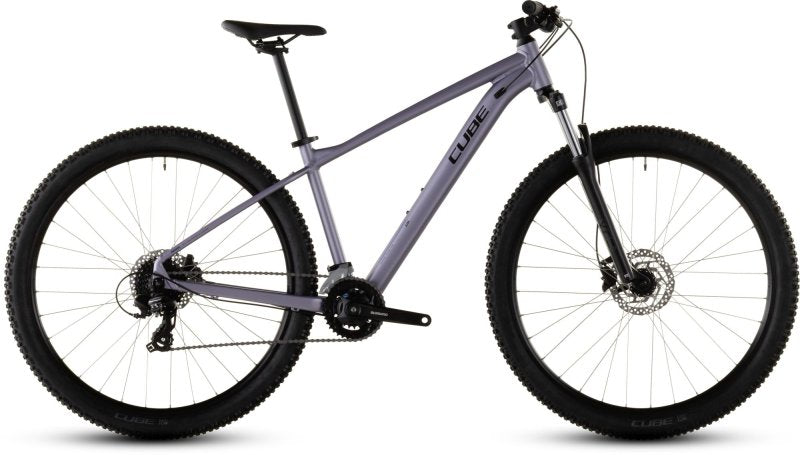

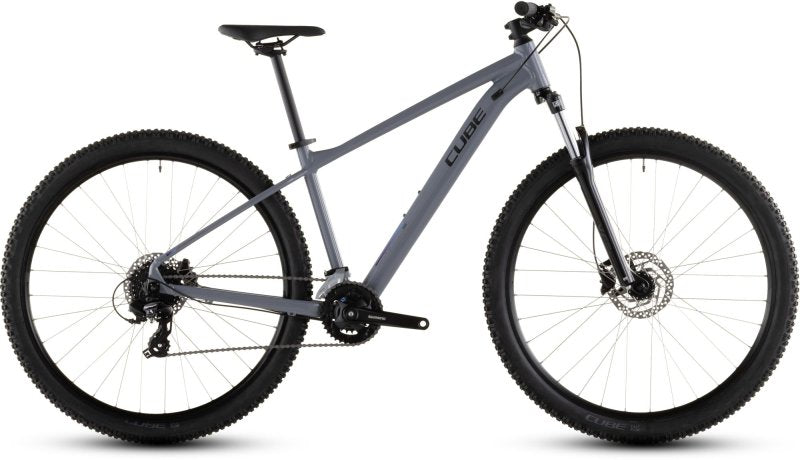

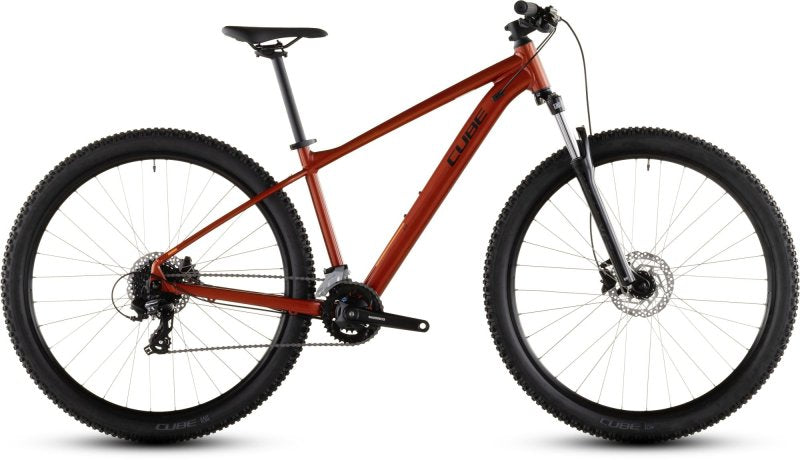

Cube Aim ONE Mountain Bike 2026
140120XS
- Description
- Size Guide
- Delivery
The Cube Aim One Mountain Bike is engineered to elevate your ride while remaining unobtrusive. Equipped with a 100mm suspension fork and broad, traction-enhancing tires, it delivers exceptional comfort and handling. The Shimano 2x8-speed drivetrain provides smooth and reliable shifting, complemented by robust disc brakes that guarantee dependable stopping power in all conditions. Available in a comprehensive range of sizes through Size Split, this bike caters to riders of all statures.
-
Frame Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
-
Fork SR Suntour XCE, 100mm
-
Headset Cube FPH863, Semi-Integrated
-
Stem Cube Performance Stem, 31.8mm
-
Handlebar Cube Rise Trail Bar, 680mm
-
Handlebar tape/Grips Acid Icon
-
Seatpost Cube Performance Post, 27.2mm
-
Seatpost clamp Cube Seatpost clamp
-
Saddle Acid Venec Lite
-
Rear derailleur Shimano RD-TX800, 8-Speed
-
Front derailleur Shimano FD-M315, Top Swing, 31.8mm Clamp
-
Crankset Shimano FC-M315, 36x22T, 170mm
-
Cassette Shimano CS-HG200, 12-32T
-
Chain KMC Z8.3
-
Shifters Shimano SL-M315, Rapidfire-Plus
-
Front brake Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
-
Rear brake Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
-
Wheels Acid Pro 25, 32/32 Spokes, QR/QR, Tubeless Ready
-
Front tyre Cube MTB, 2.25
- Pedals Cube PP MTB
| Riders Height | Frame Size | ||
| 4'10"- 5'2" (148 - 158cm) | 13" - 14" / X-Small | ||
| 5'2"- 5'6" (158 - 168cm) | 15" - 16" / Small | ||
| 5'6"- 5'10" (168- 178cm) | 17" - 18" / Medium | ||
| 5'10" - 6'1" (178 - 185cm) | 19" - 20" / Large | ||
| 6'1" - 6'4" (185 - 193cm) | 21" - 22" / X-Large | ||
| 6'4" - 6'6" (193 - 198cm) | 23" - 24" / XX-Large |
