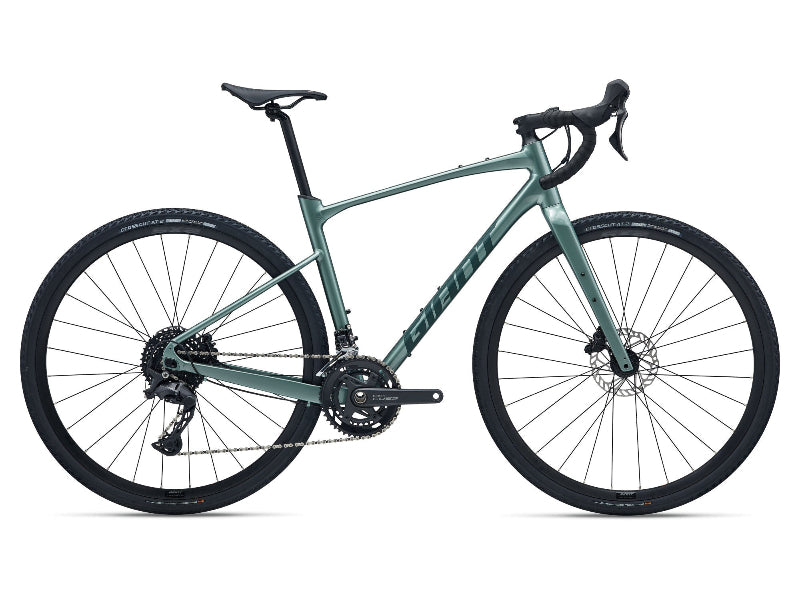

Giant Revolt 1 Gravel Bike 2026

The Giant Revolt 1 delivers responsive geometry engineered for long-distance gravel riding, combining nimble handling with extended reach for confident control across varied terrain. Its D-Fuse compliance system absorbs vibration through the handlebar and seatpost while maintaining lateral stiffness when you need it most. The flip-chip rear dropout mechanism lets you fine-tune wheelbase geometry to suit your riding style and conditions. Accommodating tyres up to 53mm, this frame excels whether you're tackling technical singletrack or grinding gravel fire roads.

Colours:  Alpine Green

• Frame ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout

• Fork Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

• Handlebar Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

• Stem Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

• Seatpost Giant D-Fuse, alloy, 14mm offset

• Saddle Giant Grit

• Pedals PEDALS NOT SUPPLIED

• Shifters Shimano CUES U6030, 2x10

• Front Derailleur Shimano CUES U6030

• Rear Derailleur Shimano CUES U6020

• Brakes Shimano CUES U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mm

• Brake Levers Shimano CUES U6030 hydraulic

• Cassette Shimano CS-LG300, 11x39

• Chain KMC X11

• Crankset Shimano FC-U6030-2, 32/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

• Bottom Bracket Shimano, threaded

• Rims Giant S-X2, alloy

• Hubs Giant alloy, 12mm thru-axle

• Spokes stainless

• Tyres Giant CrossCut AT 2, 700x38c, tubeless

• Extras tubeless prepared

• Max Tyre Clearance 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position with 1x drivetrains. Max tyre size with a 2x drivetrain is 45mm in the long position.
