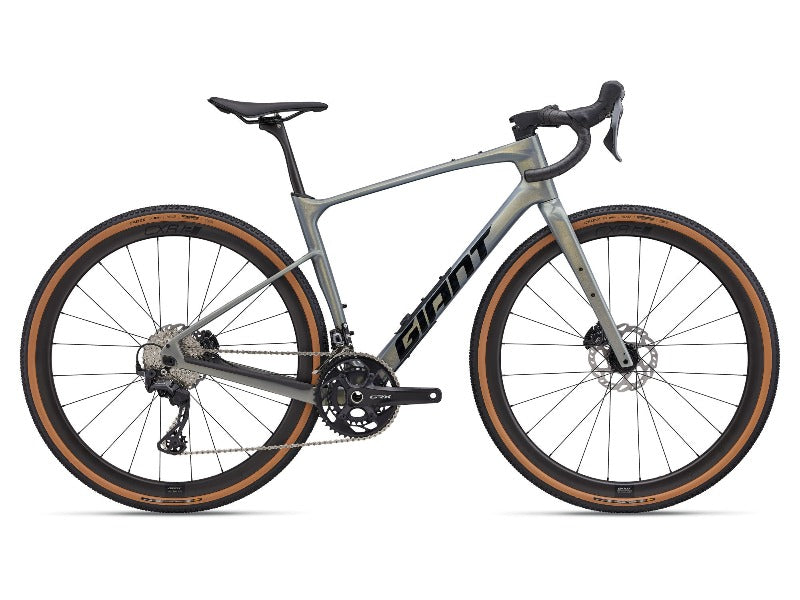

Giant Revolt Advanced 0 Gravel Bike 2025

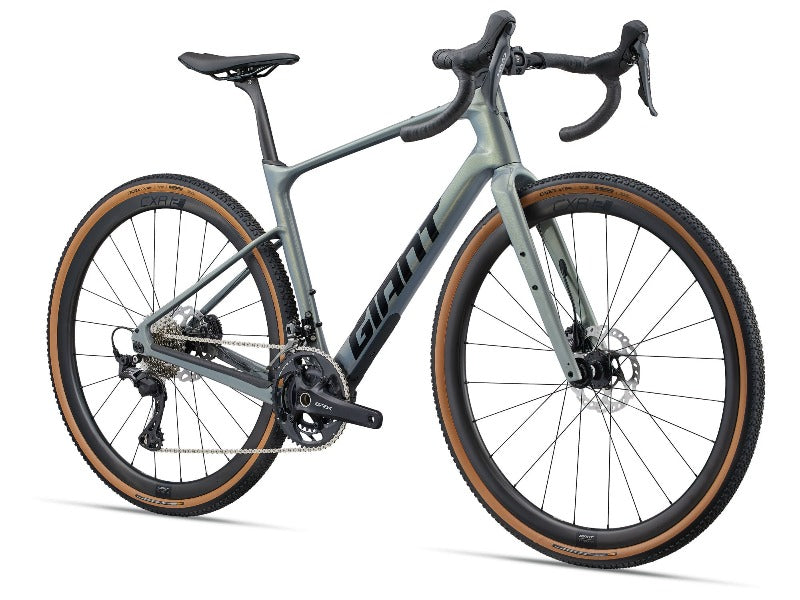

Giant Revolt Advanced 0 Gravel Bike 2025 - Front View

Giant Revolt Advanced 0 Gravel Bike 2025

9079013104

£3,799


The frame and fork of the Giant Revolt Advanced 0 Gravel Bike 2025 are made from Advanced-grade... Read More
  • Description
  • Size Guide
  • Delivery
Description

The frame and fork of the Giant Revolt Advanced 0 Gravel Bike 2025 are made from Advanced-grade composite, providing both efficiency and control. A rear dropout flip chip allows for customization of wheelbase length, either for swift handling or more tire clearance (up to 53mm) and enhanced stability. The bike includes a D-Fuse seatpost for added flexibility and compliance, or riders can opt for a traditional 30.9mm round seatpost or dropper post. With dropped seatstays and small-diameter tubing, this bike absorbs shocks and vibrations on any gravel terrain. The Contact SL XR D-Fuse alloy handlebar and carbon D-Fuse seatpost provide a smooth ride, reducing fatigue during long rides.

Experience a sleek, aerodynamic cockpit with internally routed cables. Stay organized and prepared with an accessible top tube storage compartment for tools, snacks, and essentials. Easily customize the bike with integrated mounts on the top tube, fork, and rear dropout for extra packs or fenders. Plus, the new molded chainstay and down tube protection keep the frame safe from impacts and reduce noise.

Colours: Aurora Noise

  • Frame Advanced-grade composite
  • Fork Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
  • Handlebar Giant Contact XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
  • Stem Giant Contact AeroLight, -10 degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
  • Seatpost Giant D-Fuse SL, composite, -5/+15mm offset
  • Saddle Giant Grit
  • Pedals PEDALS NOT SUPPLIED
  • Shifters Shimano GRX RX-820, 2x12
  • Front Derailleur Shimano GRX RX-820
  • Rear Derailleur Shimano GRX RX-820
  • Brakes Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm
  • Brake Levers Shimano GRX RX-820 hydraulic
  • Cassette Shimano CS-HG710, 12-speed, 11x36
  • Chain KMC X12L-1
  • Crankset Shimano GRX RX-820, 31/48 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket Shimano, press fit
  • Rims Giant CXR 2 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
  • Hubs [F] Giant alloy, CenterLock, 12mm thru-axle [R] Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle
  • Spokes Sapim Sprint
  • Tyres CADEX GX, 700x40c, tubeless
  • Extras Tubeless prepared, in-frame storage bag
  • Max Tyre Clearance 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
Size Guide
Gravel Bikes



Riders HeightFrame Size
4'10"- 5'0" (148 - 152cm)47 - 48cm / XX-Small
5'0"- 5'3" (152 - 160cm)49 - 50cm / X-Small
5'3"- 5'6" (160 - 168cm)51 - 53cm / Small
5'6" - 5'9" (168 - 175cm)54 - 55cm / Medium
5'9" - 6'0" (175 - 183cm)56 - 58cm / Large
6'0" - 6'3" (183 - 191cm)58 - 60cm / X-Large
6'3" - 6'6" (191 - 198cm)61 - 63cm / XX-Large
