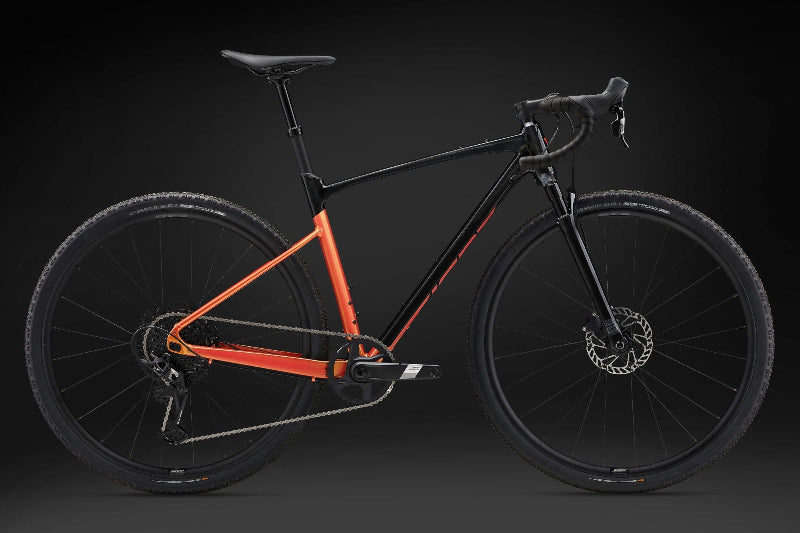

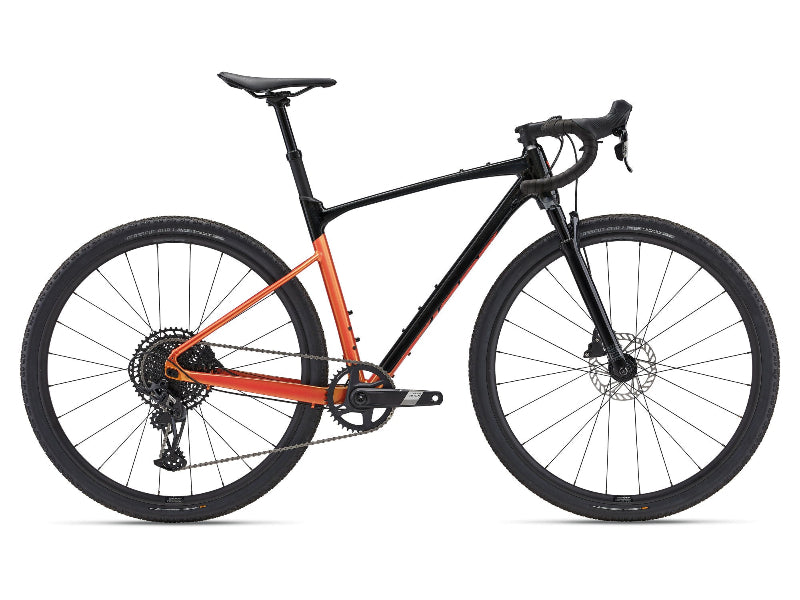

Giant Revolt X 1 Gravel Bike 2026
9080001114
- Description
- Size Guide
- Delivery
Explore uncharted routes with this advanced gravel machine, engineered with front suspension and a geometry designed to maximise suspension performance. Built from lightweight aluminium, it incorporates an innovative flip chip mechanism that enables quick adjustments to wheelbase and tyre clearance, adapting seamlessly to varied terrain and riding conditions.
Colours: Gloss Panther/Helios Orange
-
Frame ALUXX-grade aluminium, 12x142mm thru-axle, disc, flip chip dropout
-
Fork RockShox Rudy XPLR, 40mm, cartridge damper12x100mm thru-axle
-
Handlebar Giant Contact SL XR D-Fuse, 31.8mm S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
-
Stem Giant Contact, 8-degree S:50mm, M:60mm, M/L:70mm, L:70mm, XL:80mm
-
Seatpost Post Moderne suspension dropper, 30.9mm with 30mm of suspension S:415mm / 100mm drop M:415mm / 100mm drop M/L: 415mm / 100mm drop L:415mm / 100mm drop XL: 415mm / 100mm drop
-
Saddle Giant Approach
-
Pedals PEDALS NOT SUPPLIED
-
Shifters SRAM Apex, 1x12
-
Rear Derailleur Sram X1 Eagle 1X12
-
Brakes SRAM hydraulic, Giant MPH rotors [F]160mm, [R]160mm
-
Brake Levers Sram Apex 1X12 HRD (hydraulic road disc), left lever dropper switch
-
Cassette SRAM PG-1210, 12-speed, 11x50
-
Chain SRAM CN-EAGL-NX-A1, 12-speed
-
Crankset SRAM Apex 1 Wide, DUB 1X 40T S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
-
Bottom Bracket SRAM DUB, press fit
-
Rims Giant P-X2 EVO Disc wheelset
-
Hubs Alloy
-
Spokes Stainless
-
Tyres Crosscut GRIP 700x45c, tubeless prepared
Extras tubeless prepared
-
Max Tyre Clearance 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
- Max Chainring Size SRAM Wide 2x 43-30, 1x 46T. Shimano GRX 2x 48-31, 1x 42T
| Riders Height | Frame Size | ||
| 4'10"- 5'0" (148 - 152cm) | 47 - 48cm / XX-Small | ||
| 5'0"- 5'3" (152 - 160cm) | 49 - 50cm / X-Small | ||
| 5'3"- 5'6" (160 - 168cm) | 51 - 53cm / Small | ||
| 5'6" - 5'9" (168 - 175cm) | 54 - 55cm / Medium | ||
| 5'9" - 6'0" (175 - 183cm) | 56 - 58cm / Large | ||
| 6'0" - 6'3" (183 - 191cm) | 58 - 60cm / X-Large | ||
| 6'3" - 6'6" (191 - 198cm) | 61 - 63cm / XX-Large |
