- Size Guide

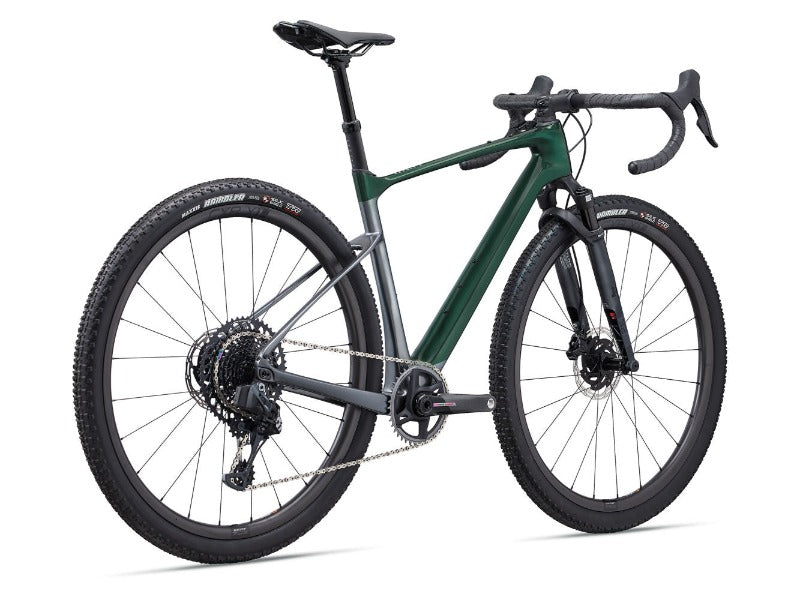

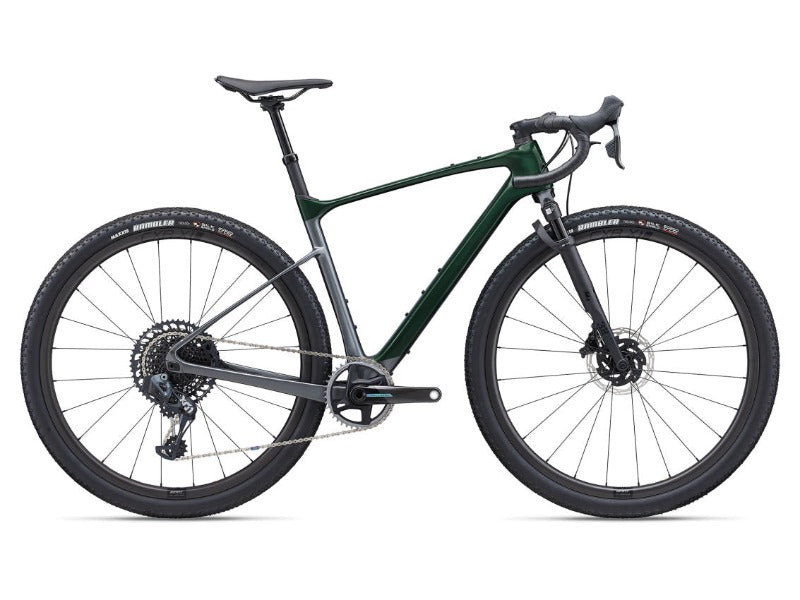

The composite frameset of the Giant Revolt X Advanced Pro 1 Gravel Bike is specifically designed for front suspension, offering 40mm of travel for smoother, faster riding. The rear dropout includes a flip chip for adjusting the wheelbase length; shorter for increased handling, longer for greater stability at high-speed.
The bike is also compatible with larger tires, up to 53mm. The included dropper/suspension seatpost adds even more comfort, while the Contact SL XR D-Fuse handlebar ensures the necessary stiffness for cornering, sprinting and climbing without sacrificing compliance.
- Frame Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
- Fork RockShox Rudy Ultimate XPLR, 40mm, Charger Race Day damper 12x100mm thru-axle
- Handlebar Giant Contact SL XR D-Fuse, 16-degree flare S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
- Grips Stratus Lite 3.0
- Stem Giant Contact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL: 80mm
- Seatpost Postmodern, dropper, 30.9mm with 25mm of suspension 415mm length / 100mm drop
- Saddle Giant Approach SL
- Pedals PEDALS NOT SUPPLIED
- Shifters SRAM Force eTap AXS, 1x12
- Rear Derailleur SRAM X01 Eagle AXS
- Brakes SRAM Force eTap AXS hydraulic, SRAM CenterLine rotors [F]160mm, [R]160mm
- Brake Levers SRAM Force eTap AXS hydraulic
- Cassette SRAM XG-1295, 12-speed, 10x52
- Chain SRAM X01 Eagle
- Crankset SRAM Force D1 DUB, 40t S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
- Bottom Bracket SRAM DUB, press fit
- Rims Giant CXR X1 Carbon Disc WheelSystem, [F] 25.8mm, [R] 25.8mm
- Hubs F] Giant CXR X alloy, CenterLock, 12mm thru-axle [R] Giant CXR X alloy, 60t ratchet driver, CenterLock, 12mm thru-axle
- Spokes Sapim Laser
- Tyres Giant CrossCut Grip 1, 700x45c, tubeless
- Extras Factory tubeless set up, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
|Riders Height||Frame Size|
|4'10"- 5'0" (148 - 152cm)||47 - 48cm / XX-Small|
|5'0"- 5'3" (152 - 160cm)||49 - 50cm / X-Small|
|5'3"- 5'6" (160 - 168cm)||51 - 53cm / Small|
|5'6" - 5'9" (168 - 175cm)||54 - 55cm / Medium|
|5'9" - 6'0" (175 - 183cm)||56 - 58cm / Large|
|6'0" - 6'3" (183 - 191cm)||58 - 60cm / X-Large|
|6'3" - 6'6" (191 - 198cm)||61 - 63cm / XX-Large|
