- Size Guide

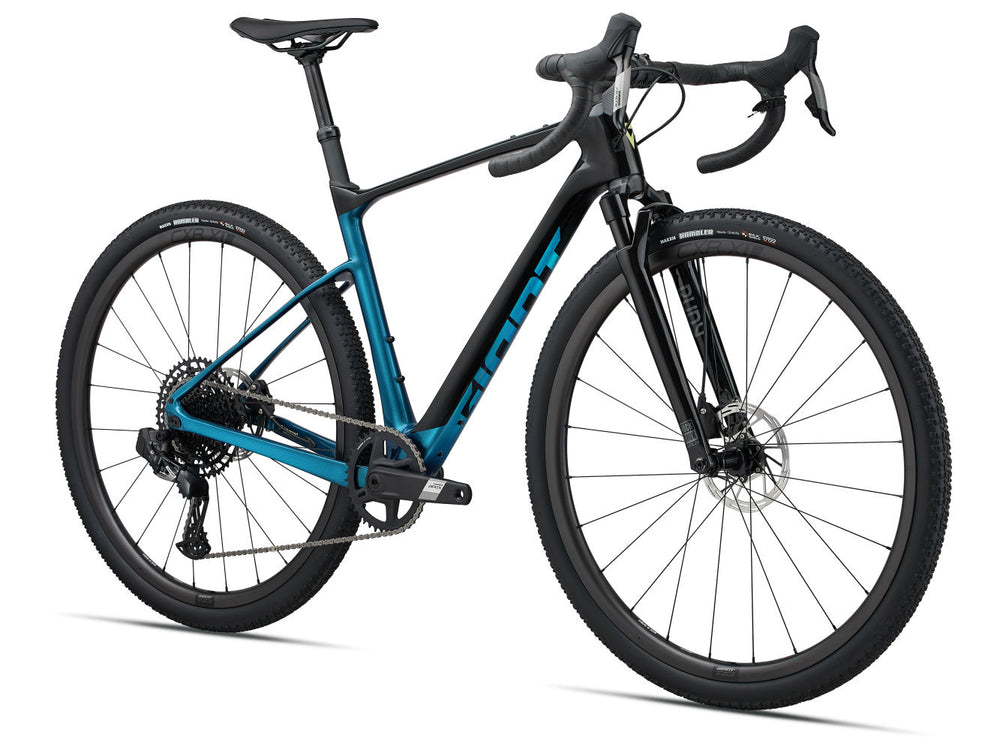

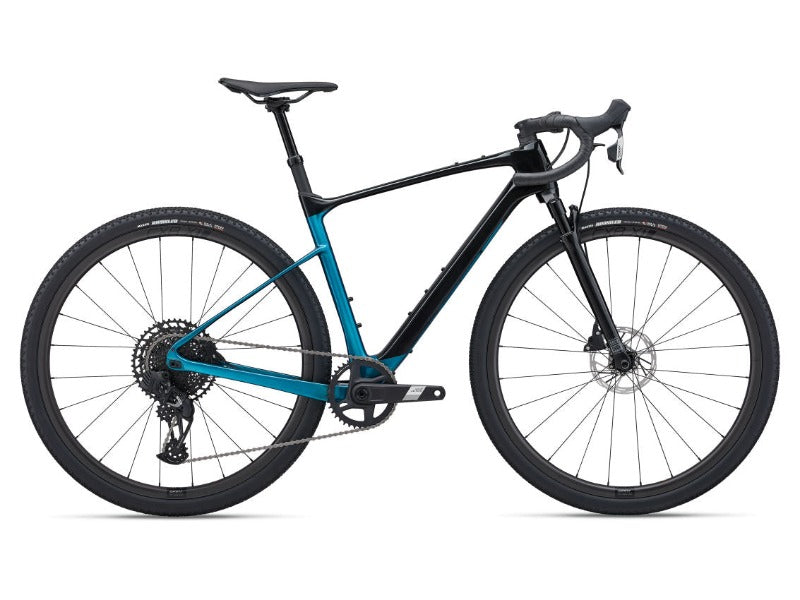

The composite frameset of the Giant Revolt X Advanced Pro 2 Gravel Bike 2024 features 40mm of front suspension travel, providing increased assurance when riding unpaved surfaces. Thoughtfully designed for front suspension, its fork provides 40mm of travel, optimizing shock absorption and enabling smoother, faster traversal on rough dirt and gravel.
Lower seatstays with smaller-diameter tubes facilitate enhanced road impact and vibration absorption while the included Contact SL XR D-Fuse handlebar adds compliance without compromising stiffness under cornering, sprinting, or climbing. Furthermore, an adjustable flip chip on the rear dropout can be adjusted to a shorter wheelbase for quicker handling or a longer wheelbase to improve stability at speed. It can even accommodate tire sizes up to 53mm. An optional dropper/suspension seatpost is also available for further enhancement.
- Frame Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
- Fork RockShox Rudy XPLR, 40mm, cartridge damper 12x100mm thru-axle
- Handlebar Giant Contact SL XR D-Fuse, 16-degree flare S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
- Grips Stratus Lite 3.0
- Stem Giant Contact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL: 80mm
- Seatpost Postmodern, dropper, 30.9mm with 25mm of suspension 415mm length / 100mm drop
- Saddle Giant Approach SL
- Pedals PEDALS NOT SUPPLIED
- Shifters SRAM Apex eTap AXS, 1x12
- Rear Derailleur SRAM X1 Eagle AXS
- Brakes SRAM hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
- Brake Levers SRAM Apex AXS hydraulic, left lever dropper switch
- Cassette SRAM PG-1230, 12-speed, 11x50
- Chain SRAM NX Eagle
- Crankset SRAM Apex D1 DUB, 40t S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
- Bottom Bracket SRAM DUB, press fit
- Rims Giant CXR X1 Carbon Disc WheelSystem, [F] 25.8mm, [R] 25.8mm
- Hubs [F] Giant CXR X alloy, CenterLock, 12mm thru-axle [R] Giant CXR X alloy, 60t ratchet driver, CenterLock, 12mm thru-axle
- Spokes Sapim Laser
- Tyres Giant CrossCut Grip 1, 700x45c, tubeless
- Extras Factory tubeless set up, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
|Riders Height||Frame Size|
|4'10"- 5'0" (148 - 152cm)||47 - 48cm / XX-Small|
|5'0"- 5'3" (152 - 160cm)||49 - 50cm / X-Small|
|5'3"- 5'6" (160 - 168cm)||51 - 53cm / Small|
|5'6" - 5'9" (168 - 175cm)||54 - 55cm / Medium|
|5'9" - 6'0" (175 - 183cm)||56 - 58cm / Large|
|6'0" - 6'3" (183 - 191cm)||58 - 60cm / X-Large|
|6'3" - 6'6" (191 - 198cm)||61 - 63cm / XX-Large|
