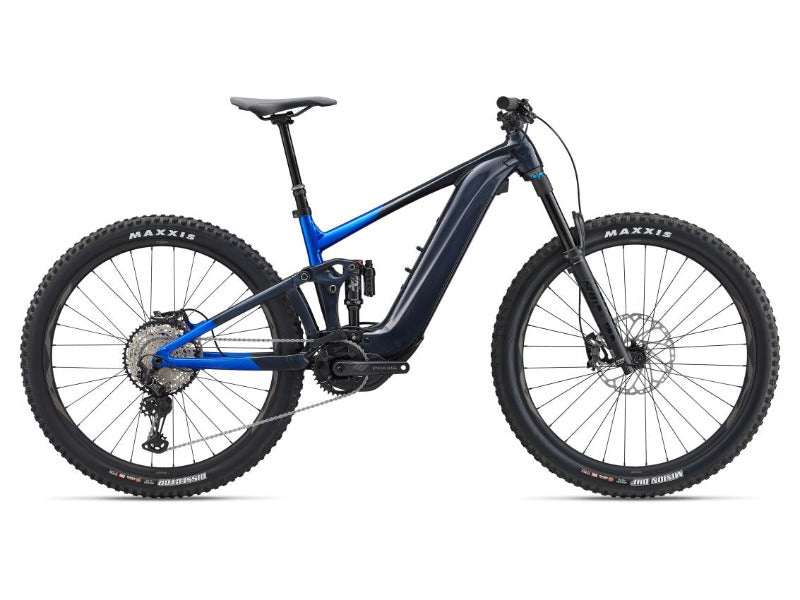

Giant Trance X E+1 Electric Bike 2023

Giant Trance X E+1 Electric Bike 2023

2313309104

£5,999

This electric bike features an optimized Maestro suspension designed for 29-inch wheels and offering 140mm of rear travel and 150mm of front travel.... Read More

  • Description
  • Size Guide
  • Delivery
Description

This electric bike features an optimized Maestro suspension designed for 29-inch wheels and offering 140mm of rear travel and 150mm of front travel. This allows for smooth navigation over rough terrain while maintaining balance and stability. With the flip chip feature, you can adjust the head tube and seat tube angles, as well as the bottom bracket height, for a customized riding experience. Tailor your handling to different trail conditions and riding styles by choosing between the low and high positions.

Colours: Cold Night

  • Motor Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology
  • Controller Giant RideControl Ergo3, grip integrated remote
  • Display Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display
  • Battery Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminiuim casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible
  • Charger Giant EnergyPak 6A smart charger, 60% in 3:00h
  • Connectivity Giant RideControl App enabled ANT+ wireless display signal with e-bike profil
  • Frame ALUXX SL-grade Aluminium, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible
  • Fork Fox 36 Float Performance E-Tuned, 29er, 150mm travel, 44mm offset, Grip 3-position Micro Adjust damper, Kabolt-X 110
  • Shock Fox Float X Performance, EVOL Large Volume sleeve, 3-Pos Lever, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
  • Handlebar Giant Contact 35 Trail, 35x780mm
  • Grips Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
  • Stem Giant Contact SL 35
  • Seatpost Tranz-X Rad+ 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)
  • Saddle Giant Romero
  • Pedals Flat pedal
  • Shifters Shimano Deore XT 1x12
  • Front Derailleur MRP HD2 co-moulded chain guide
  • Rear Derailleur Shimano Deore XT, 12-speed, Shadow+
  • Brakes Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 220mm [F], 203mm [R]
  • Brake Levers Shimano Deore XT, I-spec EV
  • Cassette Shimano CS-M7100-12, 10-51T, 12-speed
  • Chain KMC e.12 Turbo, EcoProteq, e-bike optimised
  • Crankset Praxis Wave tm 36T Cold Forged 4130 premium steel chain ring 104BCD Praxis e-crank arm set (S:160, M/L:165, XL:170) Q-factor=168mm, Chainline: 55mm, Max Chainring: 38T
  • Rims Giant AM30, Tubeless ready, 30mm inner width, 29"
  • Hubs Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
  • Spokes Sapim E-Lite [R] Race [F], e-bike optimised
  • Tyres Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R]
  • Extras Tubeless kit (liquid, valves, levers, manual, tool)
  • Lock Torx 25 Battery Lock with built-in Torque limiter
Size Guide
Electric Mountain Bikes



Riders HeightFrame Size
4'10"- 5'2" (148 - 158cm)13" - 14" / X-Small
5'2"- 5'6" (158 - 168cm)15" - 16" / Small
5'6"- 5'10" (168- 178cm)17" - 18" / Medium
5'10" - 6'1" (178 - 185cm)19" - 20" / Large
6'1" - 6'4" (185 - 193cm)21" - 22" / X-Large
6'4" - 6'6" (193 - 198cm)23" - 24" / XX-Large
Giant Mountain Bikes



Riders HeightFrame Size
5'0"- 5'5" (152 - 165cm)X-Small
5'4"- 5'8" (162 - 172cm)Small
5'7"- 6'1" (170 - 185cm)Medium
6'0" - 6'4" (182 - 193cm)Large
6'3" - 6'8" (190 - 203cm)X-Large
Mountain Bikes



Riders HeightFrame Size
4'10"- 5'2" (148 - 158cm)13" - 14" / X-Small
5'2"- 5'6" (158 - 168cm)15" - 16" / Small
5'6"- 5'10" (168- 178cm)17" - 18" / Medium
5'10" - 6'1" (178 - 185cm)19" - 20" / Large
6'1" - 6'4" (185 - 193cm)21" - 22" / X-Large
6'4" - 6'6" (193 - 198cm)23" - 24" / XX-Large
Delivery

Our standard delivery service is FREE on orders over £25.00 to mainland UK. We are committed to offering fast and free delivery, whether you're ordering bikes or accessories. Orders will usually take between two and seven working days to arrive. (excluding weekends).

Orders under £25.00 - £5.00 delivery charge

All orders over £25.00 - FREE!

Stock items dispatched next working day.

Non stock items dispatched in 2 to 5 working days.

Please note: bulky products and bikes shipped to outlying UK regions are excluded from free shipping, see 'Exceptions' below.

Exceptions to free delivery are courier deliveries to the following regions:

  • Northern Ireland
  • Scottish Highlands* and islands
  • Channel Islands
  • Isle of Man
  • Isle of Wight

Below are the areas in the UK affected by Extended Area Postcode delivery charges. We still offer free delivery for clothing and accessories however we charge £35.00 for bulky items and bike delivery.

AB37, AB44, AB53, CA18, HS1, IM, IV14, IV30, IV36, IV40, IV7, IV9, KA27, KW, LA15, PA20, PA21, PA41, PA42, PA60, PA61, PA80, PH17, PH30, PH49, TR21, ZE, AB38, AB45, AB56, CA27, HS9, IV28, IV32, IV36, IV56, IV7, IV12, KA28, LA23, PA20, PA38, PA41, PA49, PA60, PA78, PA88, PH2,

Your delivery may take slightly longer in the following instances:

  • Bikes take a little bit longer as we want to ensure they arrive with you in perfect condition, and so will take the time to inspect them before delivery.
  • The availability of one of your order items may have changed from when you purchased - if this is the case we'll email you to help you find an alternative.
  • If an item is out of stock at the time of ordering
  • If it is a UK Bank Holiday period.
